105 - Alternating bending reinforced

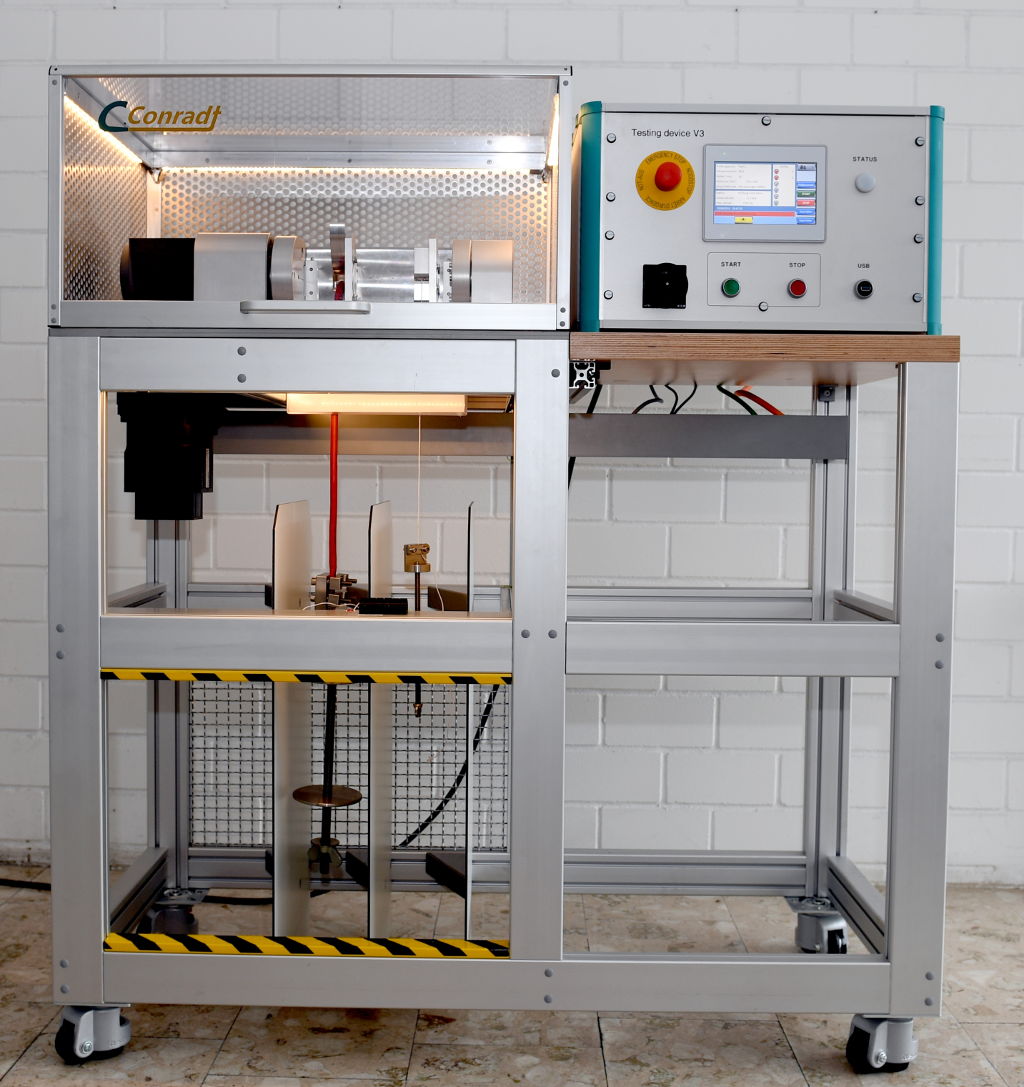

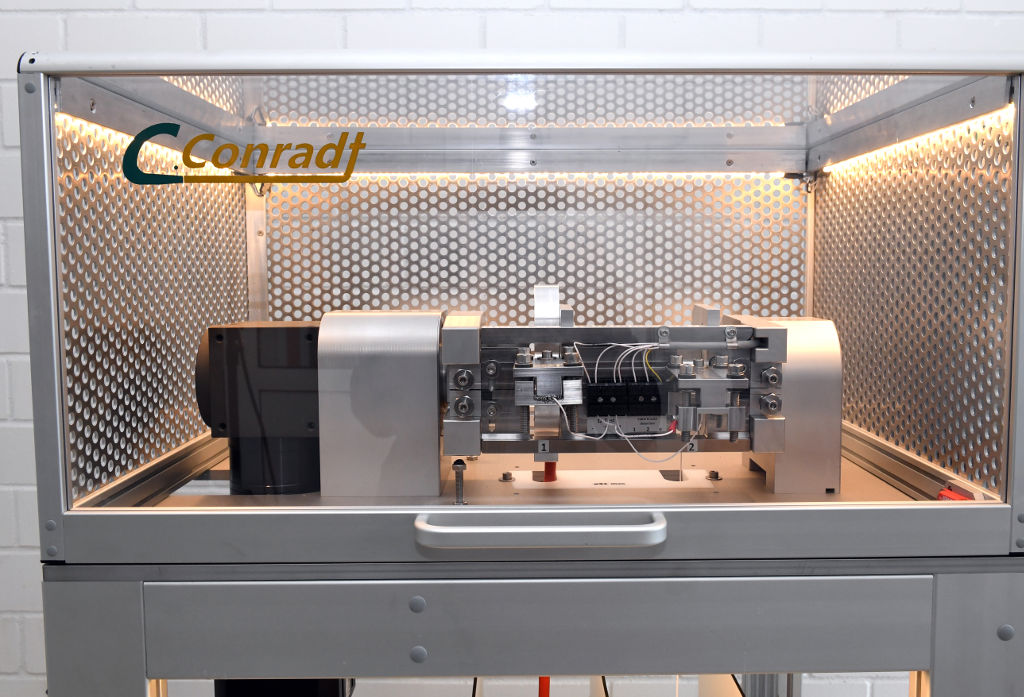

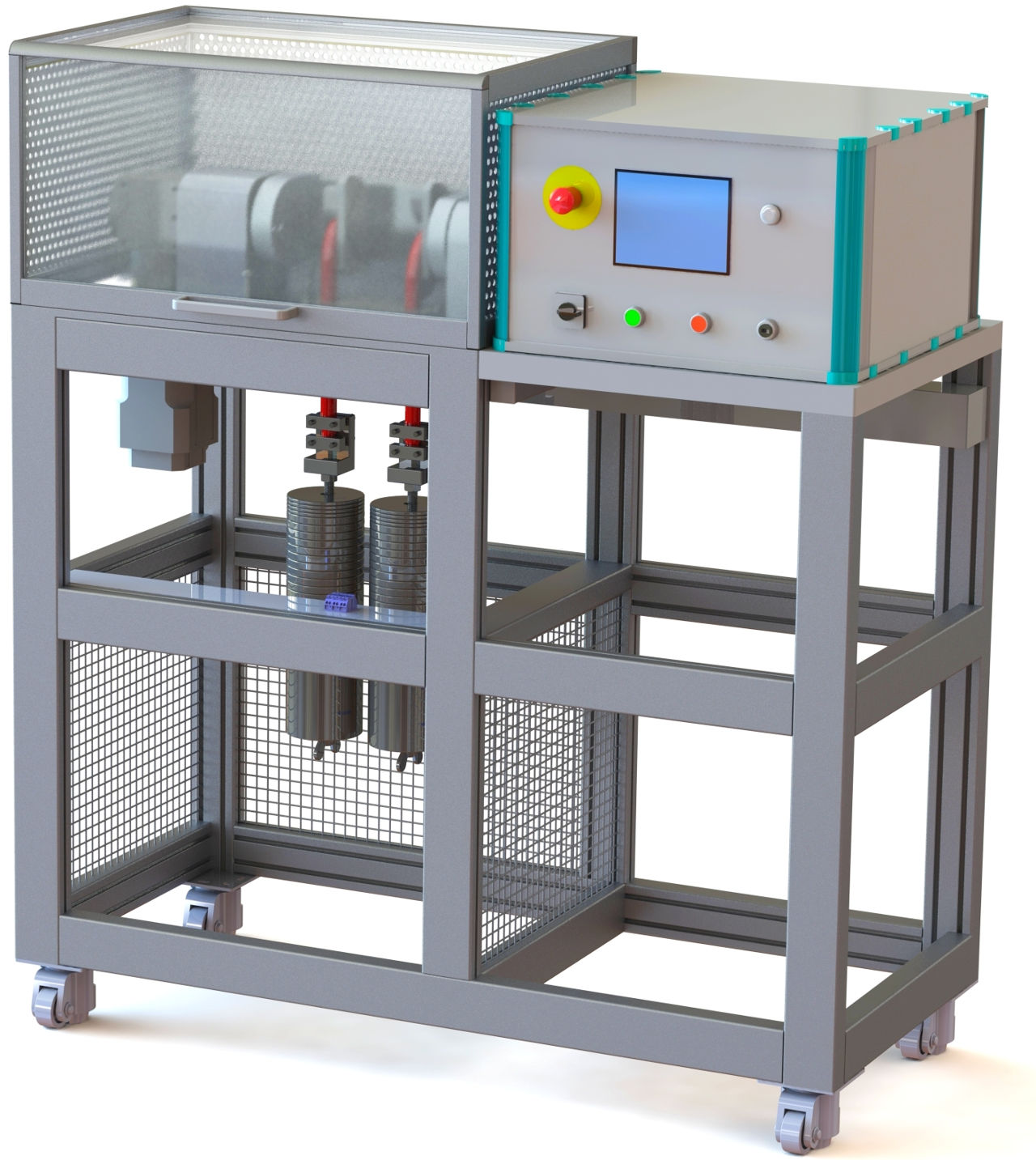

Alternating bending test device reinforced version

For alternating bending resistance tests according to ISO DIS 19642-2 (ISO 14572) - LV 112
Holders for 2 test specimens each weighing 32 Kg
Exchangeable bending rollers or bending segments and weights
Continuous electronic cable breakage monitoring
Drive via programmable servo controller
various additional options are possible

  • Details
  • Option

  • Swivel holder for 2 cable test specimens
  • Max test weights 32 Kg / Cable
  • Max cable diameter 23mm
  • Driven by servo motor. Smooth test sequence is thus always guaranteed
  • The test specimen holders are individually screwed to the swivel frame and can thus be retooled with various bending rollers and segments
  • Max. bending radius R 80 mm
  • Continuous continuity measurement with 0.1 A
  • Each cable breakage lasting at least 10 msec is logged
  • Control unit with colour touch display for inputting:
    • Stop if one cable already broken
    • Swivel angle from ±10° to ±90°
    • Number of test cycles
    • Rotary speed up to max. 60 rpm
    • Program number
  • Several selectable test modes:
    • Stop if all cables broken
    • Break if one cable already broken
    • Break at a freely programmable cycle count
    • Continuous run to the end of the specified number of test cycles
  • Only rustproof material is used
  • 400 V 16A ; 50 Hz; 5 kW CEE 5x16A

  • Custom and new designs of all kinds
  • System complete with climatic chamber
  • Communication with PLC of the climatic chamber
  • Temperature measurement and logging
  • Continual resistance measurement
  • Storage and output via
    • USB or TCP/IP to the PC:
    • START / STOP date and time
    • Test parameters
    • Test modes
  • Individual design of the input mask and sequence control

    This device was developed in co-operation with LABCO.
