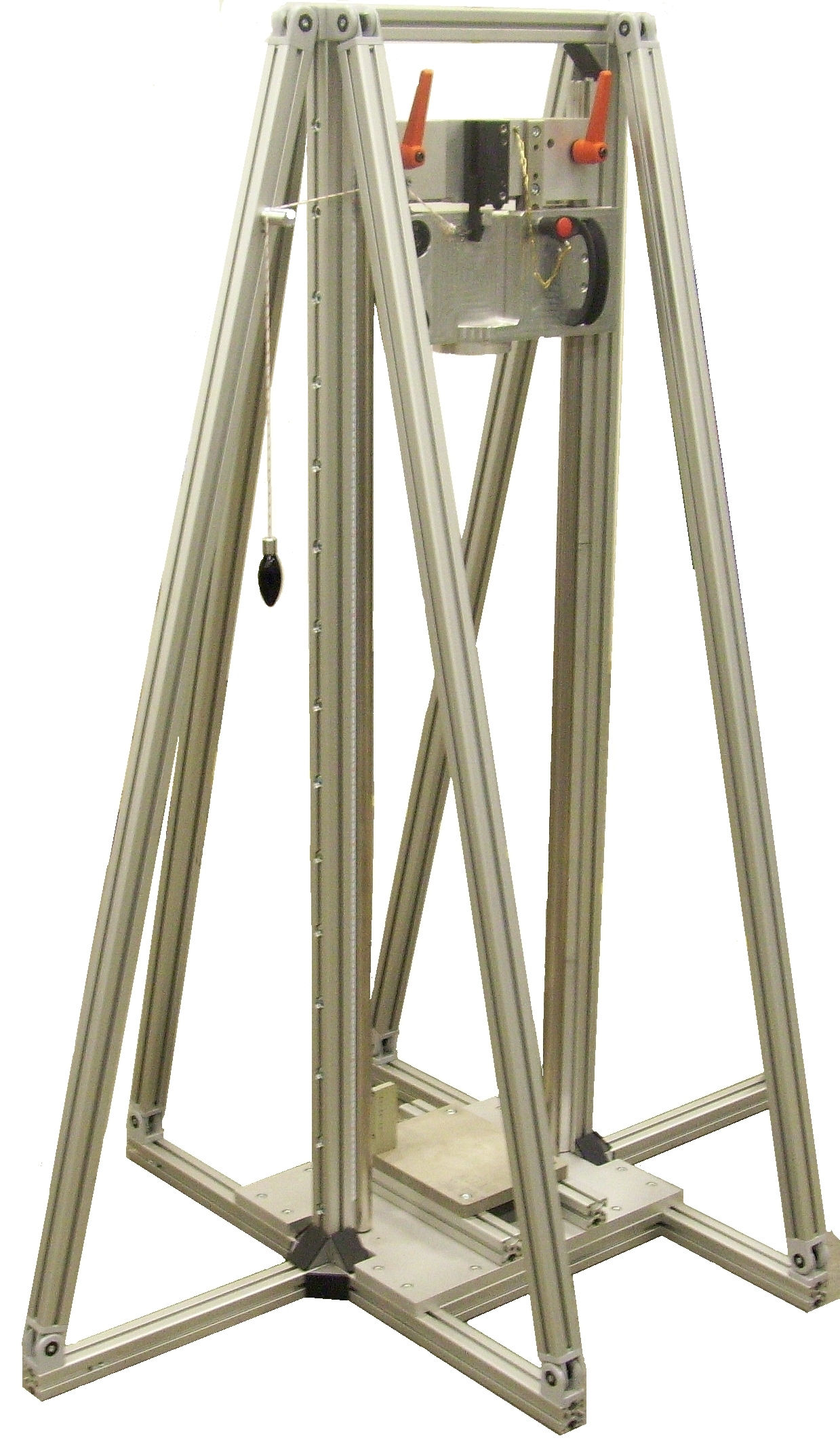

240 - Fall tower

Fall tower

For falling tests according to LV 312-3 ( VW 60360-3 )
Variably adjustable fall height
Fall weight 10 kg ( optionally changeable )
With high-speed light barriers for exact speed measurement
Exchangeable fall tools

  • Details
  • Option

  • Built of stable aluminium construction profiles
  • Fall weight 10 kg
  • Fall height freely adjustable for various impact speeds

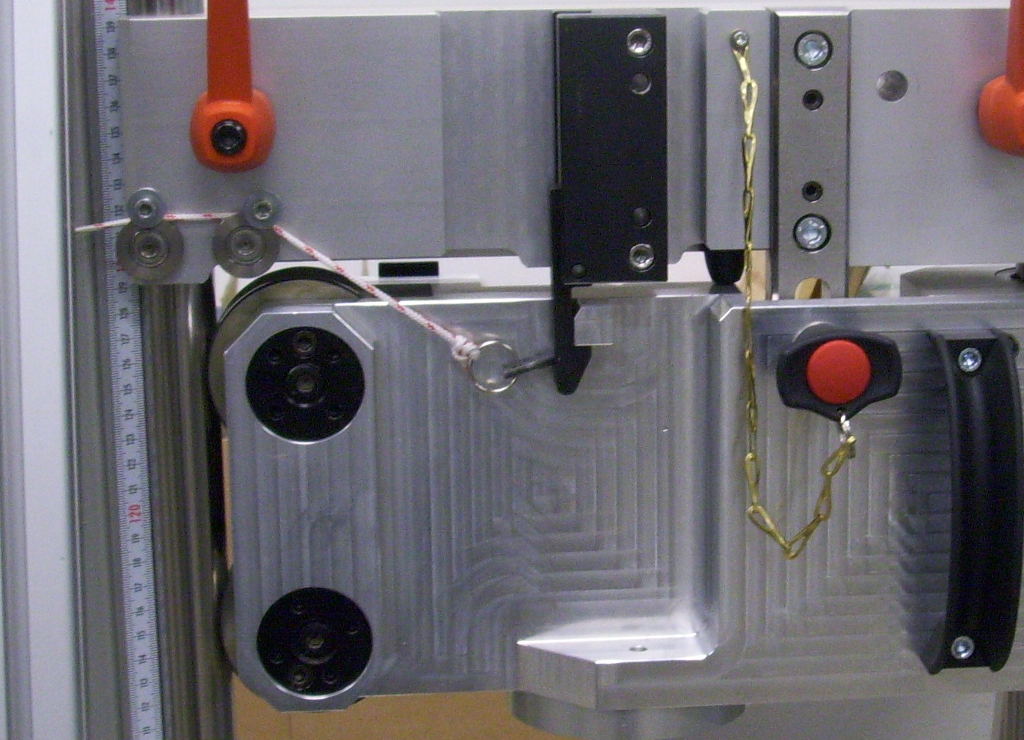

  • The impact speed is calculated by two high-speed light barriers and logged
  • The fall tools are easy to exchange
  • Remote control: fall process can be triggered by cable-pull
  • Only rustproof materials are used

  • Special designs of all kinds

    This device was developed in co-operation with LABCO.
