190 - Cable bending

Cable bending test device

For cable bending resistance tests according to VW75206-1 LV 213-1
Holders for 12 test specimens at the same time
Alternating bending angle adjustable up to 180°
Optional: constant checking for cable breakage and short-circuit between the cores
Operating temperature -40 °C to +80 °C
Drive via programmable servo controller

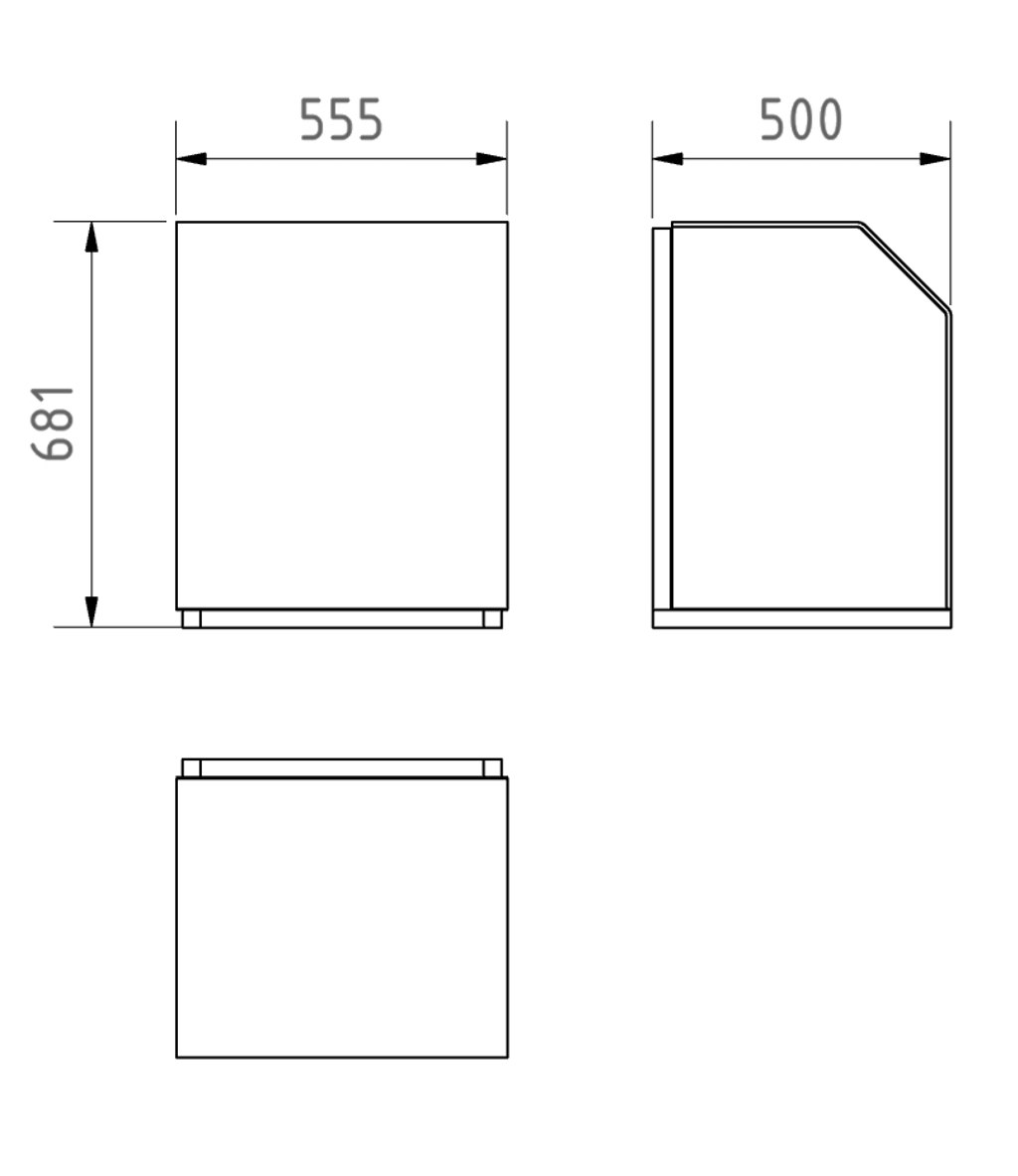

  • Details
  • Option

  • Bending shaft driven by servo motor
  • Holders for 12 test specimens at the same time
  • Optional: constant checking for cable breakage and short-circuit between the cores
  • Optional: each cable breakage / short-circuit is logged
  • The controller is connected to the device by a 5-m long cable with plug
  • Control unit with colour touch display for inputting the test parameters:
    • Speed
    • Bending angle
    • Possible waiting time between cycles
    • Number of test cycles
    • Program number
    • Order number
  • The system is designed for an environmental temperature of -40 °C to +105 °C
  • Only rustproof materials are used
  • Power-rating: 230 V AC 50 Hz 0,96 KW

  • Custom and new designs of all kinds
  • System complete with climatic chamber
  • Communication with PLC of the climatic chamber
  • Temperature measurement and logging
  • Continual resistance measurement
  • Version for operating temperatures above 110 °C
  • Storage and output via
    • USB or TCP/IP to the PC:
    • START / STOP date and time
    • Test parameters
    • Test modes
  • Individual design of the input mask and sequence control

    This device was developed in co-operation with LABCO.
