180 - Fall drum box

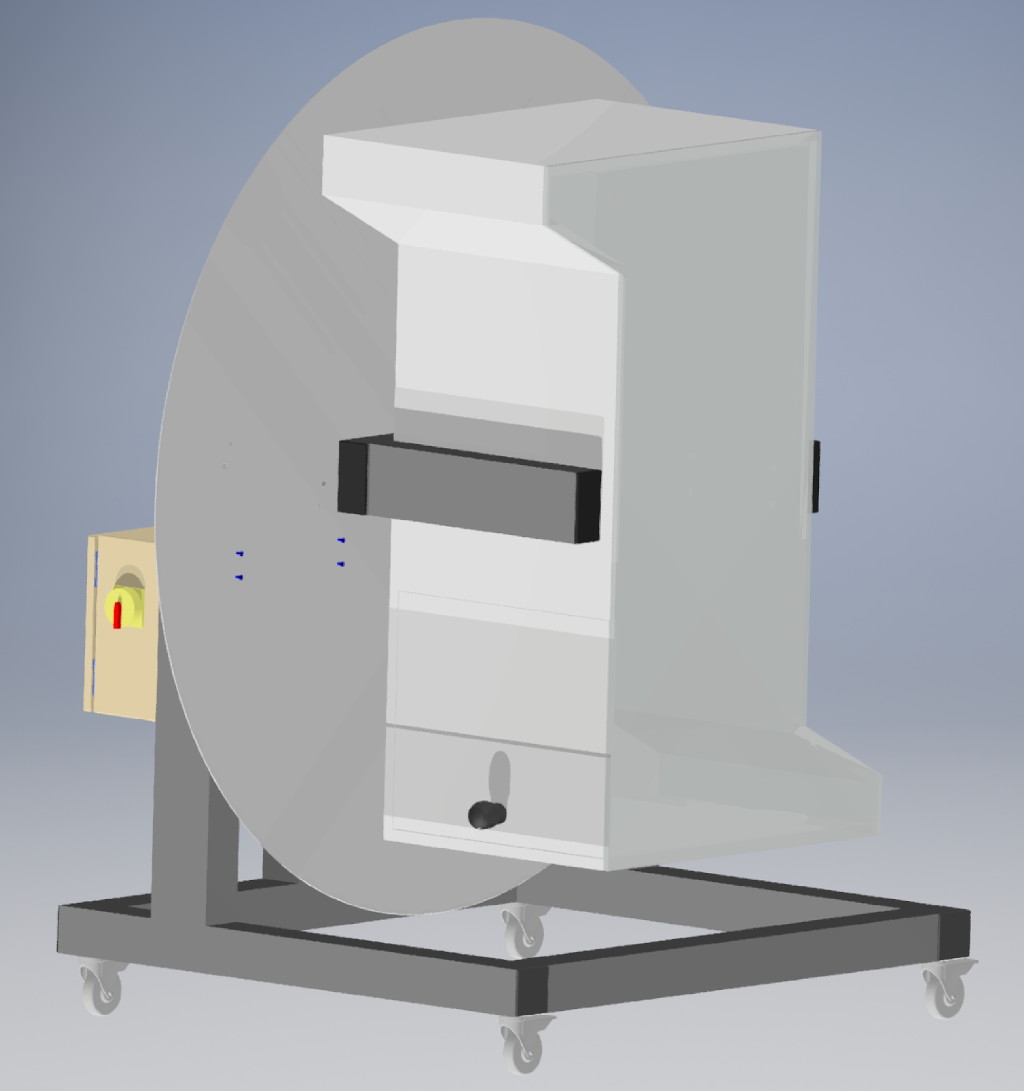

Fall drum box

For falling tests according to LV 214 ( VW 75174 )
For testing the stability and locking of housings according to DIN EN 60068-2-31
Variably adjustable or preset drop speed

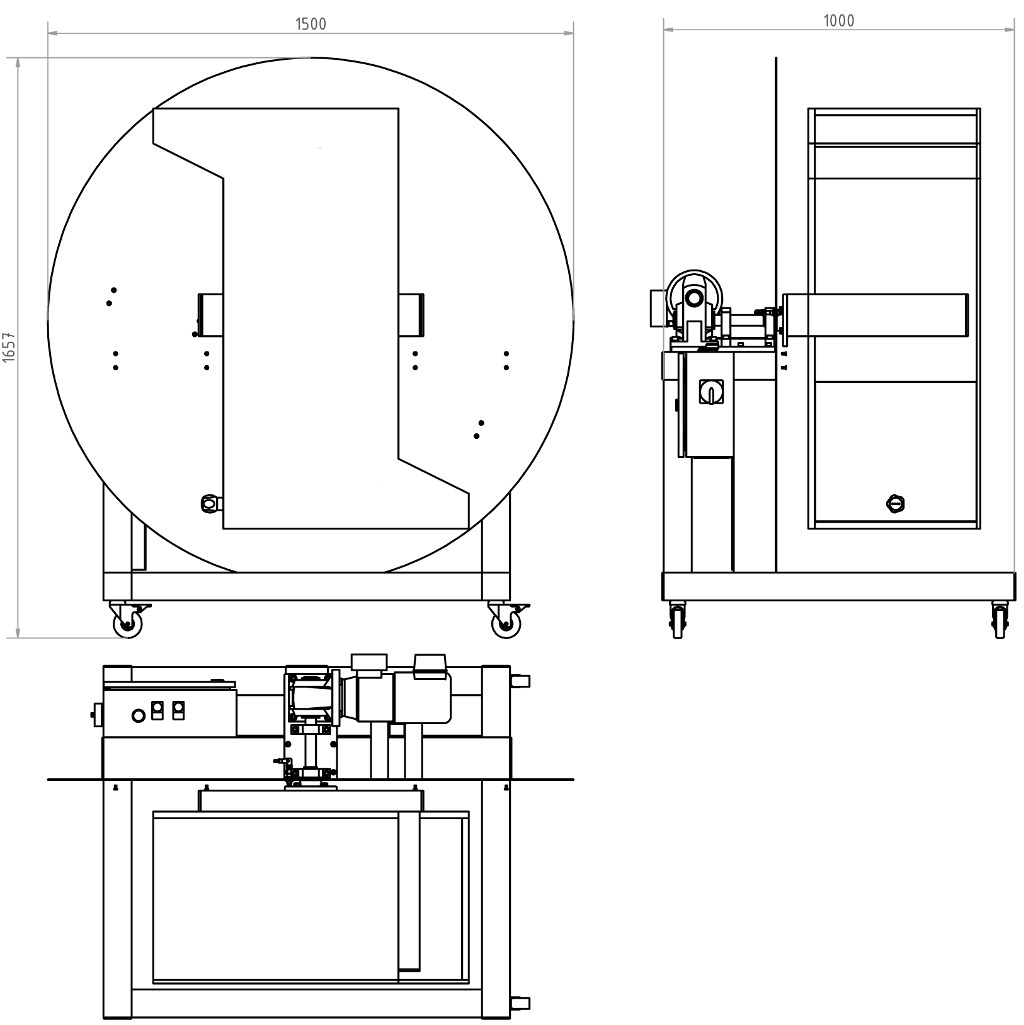

Fall height: 1,000 mm
Front wall in form of clear-view screen
On lockable steering castors, thus easy to move

  • Details

  • Built of stable aluminium construction profiles

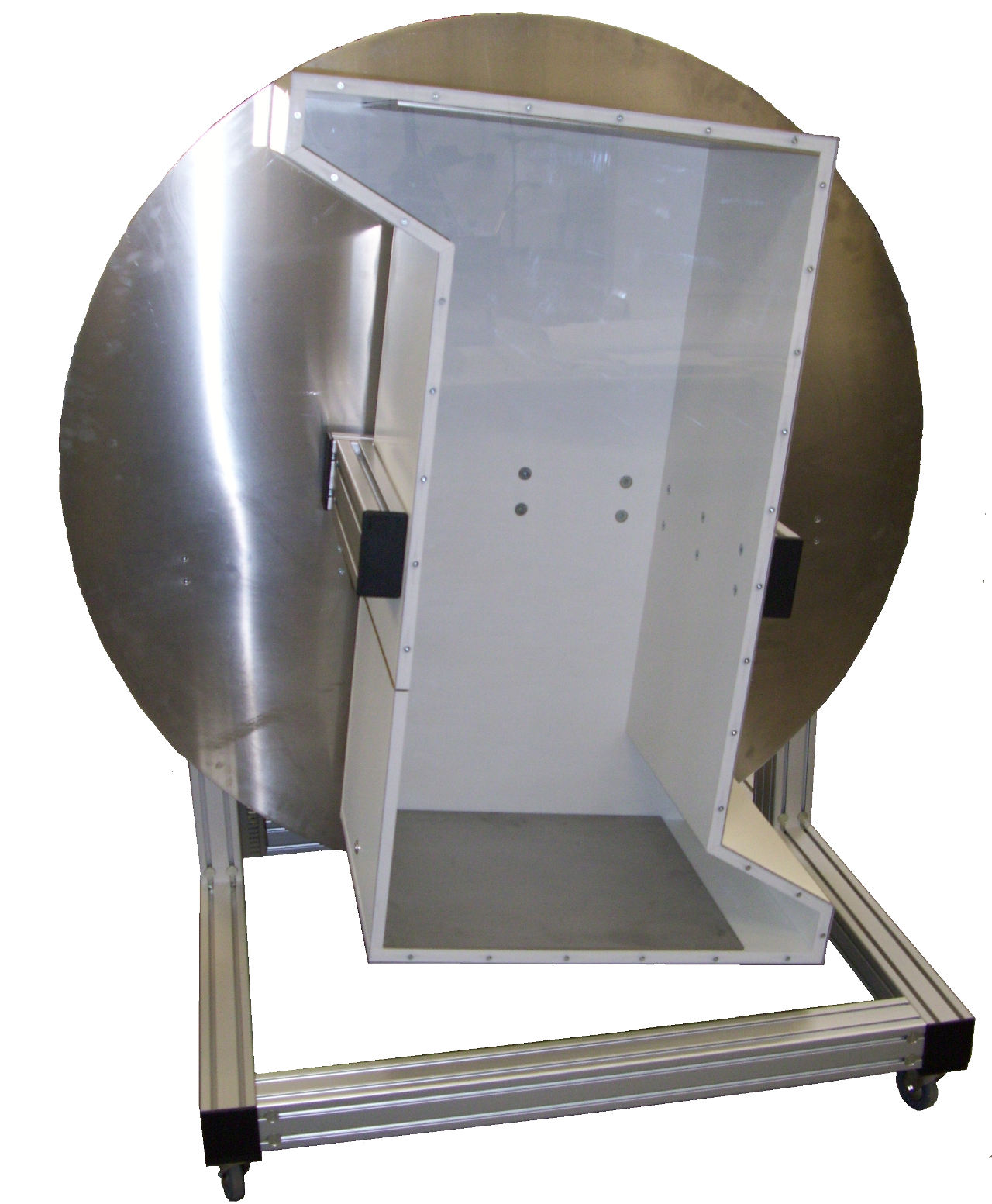

  • Rotary drum with clear front wall and two impact plates made of stainless steel
  • Large volume, hence several test specimens can be tested simultaneously
  • Fall height 1000 mm
  • Speed of rotary drum finely adjustable
  • Adjustable preset number of revolutions
  • Built on steering castors with lock. Thus easy to move
  • Driven by worm gear motor
  • Power-rating: 230 V AC; 3 kW

    This device was developed in co-operation with LABCO.
